NU-X  |  SKU: NUXTEE

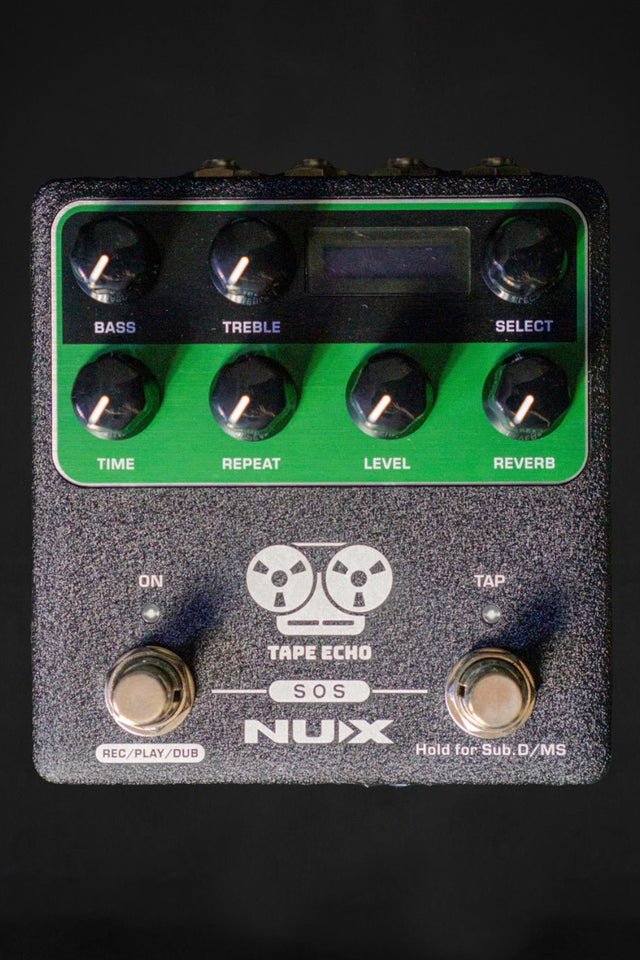

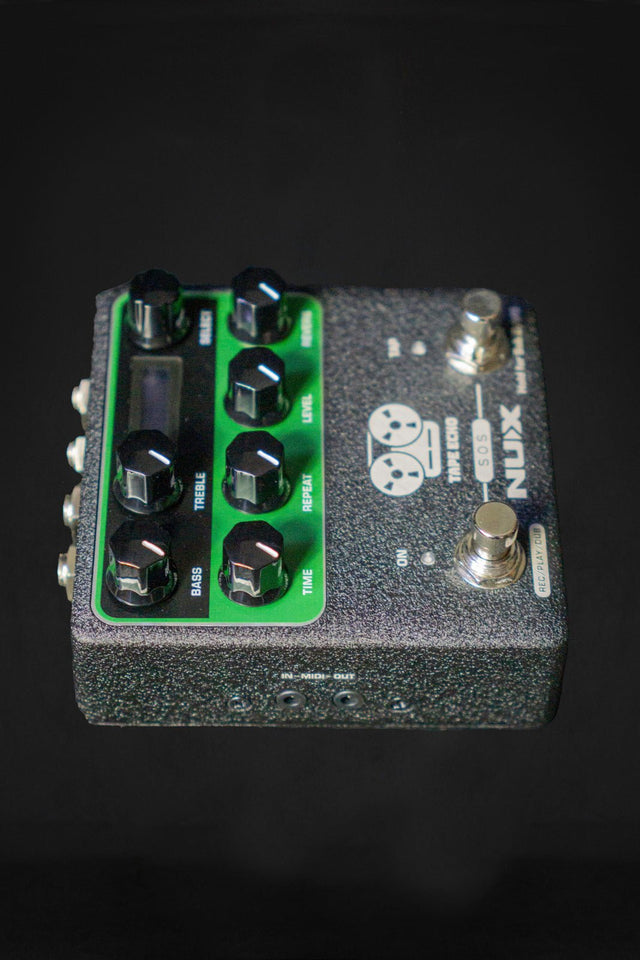

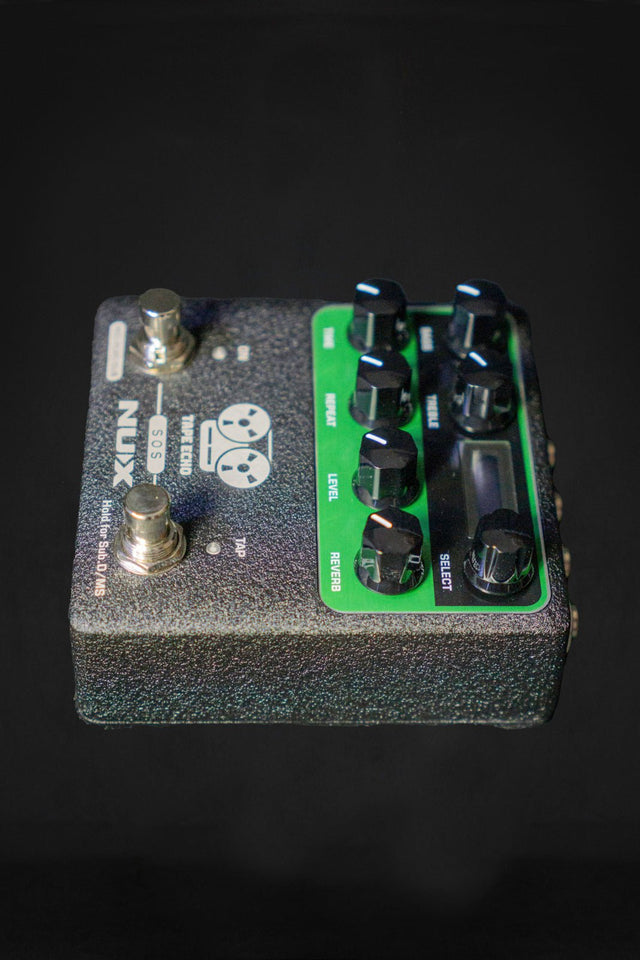

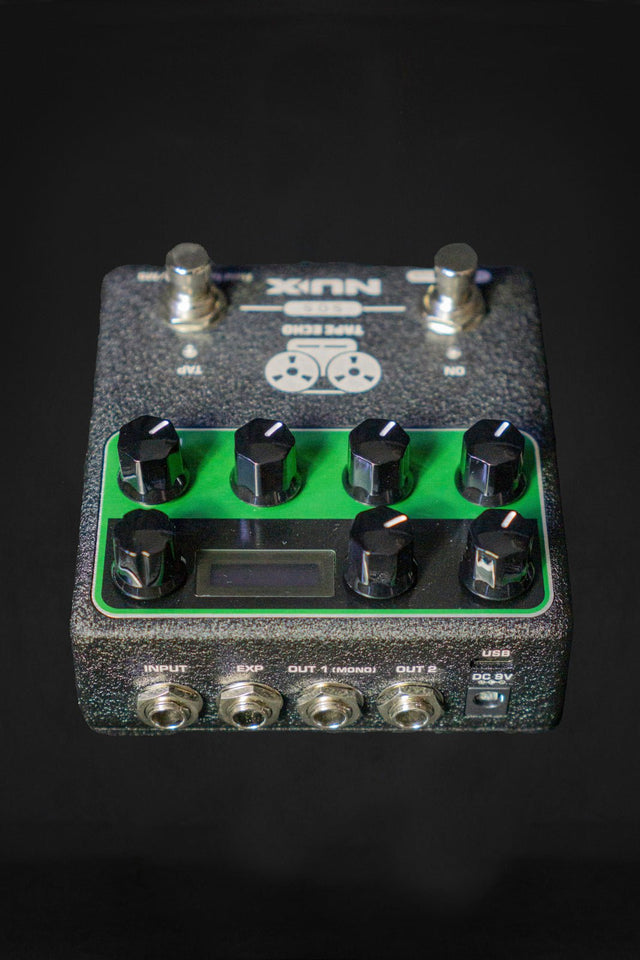

NU-X Tape Echo Emulator Pedal

£149.00 £189.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

All instruments are passed through our workshop prior to shipping.

This includes a 25 point Q.C. check and setup to your spesifcation.

This means it can take anything up to 2 weeks to recieve your instrument from date of purchase.

All shipping is done via Royal Mail & Parcelforce. Tracking is provided once shipped.

Local Tree Planting

We've planted over 11,000 saplings locally on Dartmoor! No overseas planting, just right on our doorstep.

We've planted a variety of native hardwoods.

Not only this but we also support Moor Trees and their ambition to rewild Dartmoor.

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
We fund innovations in...
Direct Air Capture
Bio Oil
Mineralization

Description

NUX TAPE ECHO is a tribute to the Japanese-made Space Echo from 1974. Analogue tape echo devices record incoming audio to a loop of magnetic tape, then replays the continuous loop over the playback head before it is erased again by new incoming audio. The Space Echo units used the standard 1/4" tape designed to spool onto tape-reels, however, this device used no reels of any kind; the tape is transported via a capstan drive. The tape loop is contained in a loose, constantly moving jumble in the tape chamber (also known as the tape tank) under a plastic panel which protects the tape and keeps it from getting tangled. The design resulted in lower levels of noise, wow, and flutter, and cut down on tape wear.

NUX TAPE ECHO uses Core-Image technology to capture these characteristics including BASS, TREBLE, REPEAT RATE (TIME), INTENSITY (REPEAT), ECHO VOLUME (LEVEL), REVERB VOLUME (REVERB), and physical features like WOW, FLUTTER, SATURATION. Even self-regenerate, self-oscillation using a dual foot switch stomp-box enclosure !

Our Thoughts

Specs

  • Sampling rate:48kHz
  • A/D Converter:32Bit
  • Signal Processing:32Bit
  • Frequency Response:20Hz~20kHz - ±1dB
  • Input Impedance:5MΩ
  • Maximum input level:1.5Vrms
  • Output Impedance:100Ω
  • Maximum output level:1.5Vrms
  • System Latency:1ms
  • Dynamic Range:103dBu/105dBu(A-Weighting)
  • THD+N Ratio:0.0038% @ input 1Vrms_1kHz ;0.01% @ input 1.5Vrms_1kHz
  • Power:9V DC(Negative tip, Optional ACD-006A adapter)
  • Current Draw:approximately 100mA,<150mA
  • Dimensions:105mm(L)x115mm(W)x58(H)mm
  • Weight:440g
